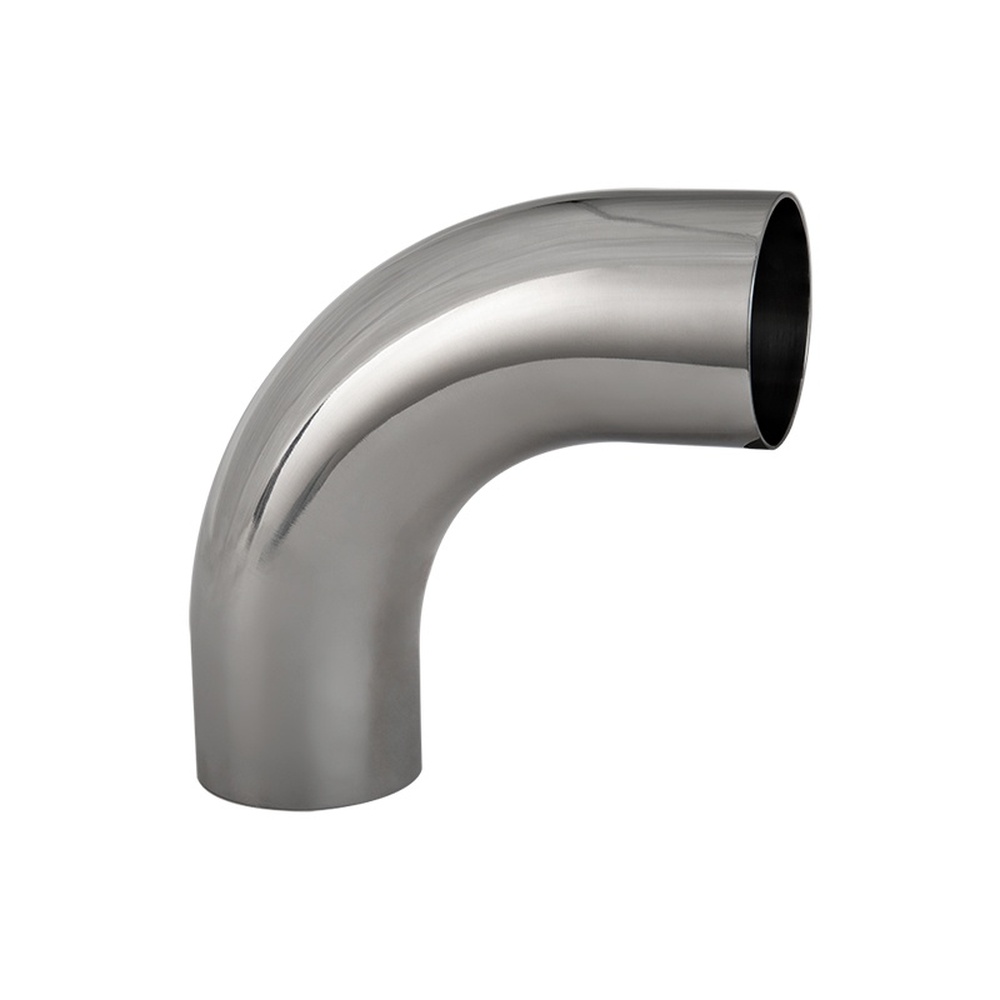

Long-Radius Sanitary Elbow

Long-Radius Sanitary Elbow is designed for direction changes in hygienic stainless steel piping in sanitary stainless steel process systems. It supports standard sanitary ends and B2B hygienic piping projects for food, beverage, dairy, pharmaceutical and clean manufacturing applications.

Where This Sanitary Fitting Fits

Long-Radius Sanitary Elbow is suitable for hygienic process piping where buyers need cleanable product contact surfaces, accurate pipe-standard matching and reliable integration with stainless steel sanitary equipment. It is commonly specified for plant upgrades, OEM skids, food and beverage lines, dairy systems and pharmaceutical clean-process installations.

Key Difference from a Standard Pipe Fitting

This product is different from a general industrial pipe fitting because it is selected for smooth bend geometry for cleaner flow direction changes and sanitary tube layout. For B2B procurement, the buyer should confirm tube size, material grade, surface finish, connection standard and cleaning requirements instead of selecting only by nominal size.

Connection and Piping Compatibility

Connection selection should match tube OD, pipe standard, gasket or sealing method, installation space and cleaning practice. The fitting should match the plant pipe standard and maintenance practice so the line can be installed, inspected and cleaned without compatibility problems.

Typical Applications

• process line routing
• CIP piping
• skid pipework
• tank and equipment connections

Information Needed for Quotation

For faster selection and quotation, send the pipe standard and operating conditions together with the product name or drawing.

• Product name or drawing, including fitting type and required sanitary standard.
• Tube outside diameter, DN/inch size, wall thickness and pipe standard such as 3A, DIN or SMS where applicable.
• Connection type and end form, especially whether the project requires standard sanitary ends.
• Material grade, such as 304 or 316L stainless steel, plus surface finish requirements.
• Process medium, cleaning method, working temperature and pressure where relevant.
• Quantity, destination country, target delivery time and any project drawings or equipment photos.

FAQ

What is Long-Radius Sanitary Elbow used for?

Long-Radius Sanitary Elbow is used for direction changes in hygienic stainless steel piping in sanitary piping systems. Typical buyers use it for process line routing, CIP piping, skid pipework, tank and equipment connections.

How is it different from a general industrial pipe fitting?

This fitting is selected for smooth bend geometry for cleaner flow direction changes and sanitary tube layout. Compared with general industrial fittings, buyers should confirm sanitary material, tube standard, surface finish and clean-process compatibility.

Which connection type should be selected?

Connection selection should match tube OD, pipe standard, gasket or sealing method, installation space and cleaning practice.

What standards should buyers confirm?

Confirm tube OD, wall thickness, sanitary standard, material grade, connection type, surface finish and gasket or sealing compatibility before ordering.

What information is needed for quotation?

Provide product name, size, tube standard, material, surface finish, connection type, quantity, destination country and drawings if available.
